BYD Seal Tire Pressure Guide: Correct PSI for All Conditions

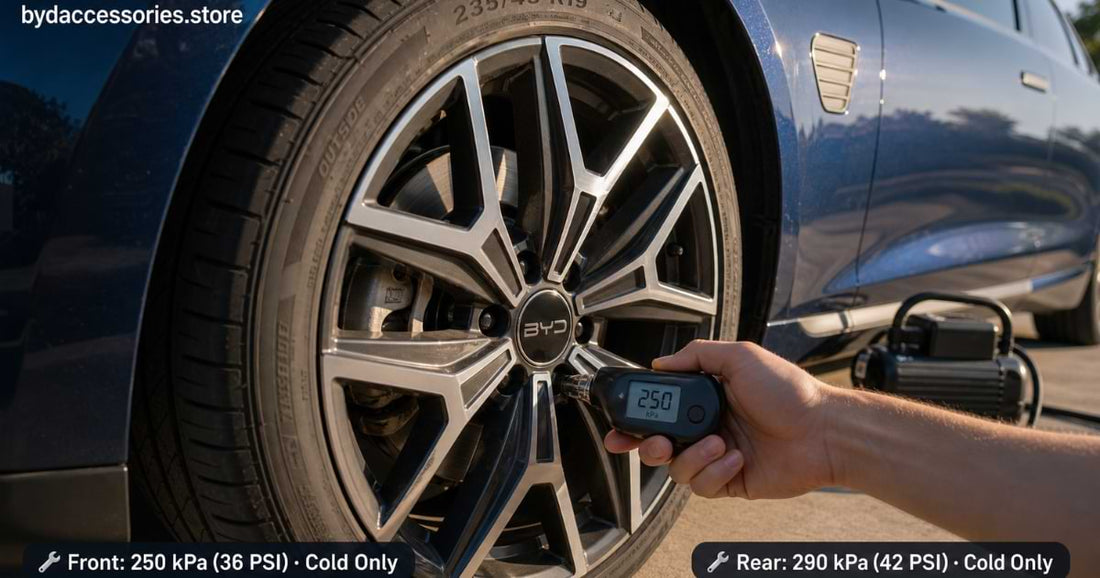

The BYD Seal's recommended cold tire pressures are 250 kPa (36 PSI) front and 290 kPa (42 PSI) rear, as stated on the driver's door frame label and confirmed in the owner's manual. These apply to both the 225/50 R18 and 235/45 R19 tire options. Always measure when tires are cold (at least 3 hours after driving, or within 1.6 km of movement). Hot readings will be 30-40 kPa higher than cold, which is normal.
Why Tire Pressure Matters More on EVs?
The BYD Seal weighs between 1,940 kg (RWD) and 2,100 kg (AWD Performance) due to its 82.56 kWh Blade Battery. That is 300-500 kg heavier than a comparable petrol sedan. This extra mass puts significantly more load on each tire, making correct inflation critical for range, safety, and tread life.
The owner's manual warns: "Driving with underinflated tires leads to uneven tire wear, affects maneuverability and power consumption, and may cause air leakage due to overheating." On an EV where every kWh counts toward range, even 15 kPa of underinflation can reduce efficiency measurably.
BYD Seal Recommended Tire Pressures
| Measurement | Front | Rear |
|---|---|---|
| Cold pressure (kPa) | 250 kPa | 290 kPa |
| Cold pressure (PSI) | 36 PSI | 42 PSI |
| Cold pressure (bar) | 2.5 bar | 2.9 bar |
| Hot reading (normal) | 280-290 kPa | 320-330 kPa |
| Tire size (standard) | 225/50 R18 | |
| Tire size (optional) | 235/45 R19 | |
| Pressure label location | Driver's side door frame | |
| Applies to | All Seal variants (RWD and AWD) | |
Front vs Rear: Why Are They Different?
The Seal runs 40 kPa higher at the rear (290 vs 250 kPa) because the heavy Blade Battery pack is concentrated along the vehicle floor, with more weight biased toward the rear axle. The AWD Performance model carries 948 kg on the rear axle alone at kerb weight.
Higher rear pressure compensates for this load distribution, preventing rear tire squash, improving rear stability, and ensuring even tread wear across both axles.
Hot vs Cold Inflation: Which to Use
The BYD Seal manual is clear: always measure and set pressure when tires are cold. The manual defines "cold" as:
- At least 3 hours after stopping the vehicle
- Or within 1.6 km of driving distance (tires still considered cold)
The manual explicitly warns: "It is normal that tire pressure reading measured while tires are hot (after travel of several kilometers) is 30-40 kPa higher than when tires are cold. Do not deflate tires in order to achieve the specified cold tire pressure reading; otherwise, the tire pressure will be insufficient."
In simple terms: if you check after driving and see 280 kPa front and 320 kPa rear, that is perfectly normal. Do not release air.
How TPMS Works on the Seal?
The Seal is equipped with a Tire Pressure Monitoring System (TPMS) that displays real-time pressure for each tire on the instrument cluster. Key details from the manual:
- Real-time display: Shows pressure for all four tires while driving
- Warning alert: Triggers if any tire drops below the safe threshold
- "---" or "No Signal": Indicates a sensor fault or communication issue
- Regional temperature variation: Tire pressure changes with ambient temperature. Inflate or deflate according to instrument cluster values and the standard tire pressure
- Wireless transmission: TPMS reception may be affected in areas with severe electromagnetic interference
- Limitation: The system does not prevent driving with abnormal pressure. Always check before each drive
The TPMS warning light is one of many dashboard indicators covered in our Seal ADAS and safety features guide.
Effect of Wrong Pressure on Range
Incorrect tire pressure has a direct, measurable impact on your Seal's driving range:
- 10% underinflated: Approximately 3-5% range loss due to increased rolling resistance
- 20% underinflated: Approximately 6-10% range loss, plus accelerated shoulder wear
- 10% overinflated: Minimal range gain (1-2%) but harsher ride and reduced grip
- Correct pressure: Optimal balance of range, comfort, grip, and tread life
On the Seal Performance with 570 km WLTP range, 20% underinflation could cost you 35-57 km of range per charge. That is a meaningful difference on a road trip.
Adjusting for Heavy Loads or Motorway Driving
- Full passenger load (5 adults + luggage): Add 10-20 kPa to both front and rear above the standard cold pressure
- Sustained high-speed motorway driving: Standard pressure is sufficient. Do not reduce pressure after checking hot readings.
- Summer heat (above 40°C ambient): Pressures will read higher when hot. This is normal. Do not deflate.
- Winter cold (below 5°C): Pressures drop approximately 7 kPa per 10°C temperature drop. Check monthly and add air as needed.
Checking Pressure on the Instrument Cluster
The Seal displays live tire pressure readings directly on the instrument cluster. To check:
- Start the vehicle statically (before driving).
- Navigate to the tire pressure display on the instrument cluster.
- Compare all four readings against the recommended 250/290 kPa (front/rear).
- If any tire is low, inflate to the correct cold pressure before driving.
The manual states: "Each time before driving, the vehicle should be started statically to check whether the tire pressure meets the requirements specified by the manufacturer."
When to Replace Tires?
- Tread depth below 1.6 mm: Legal minimum. Wear bars cast into the tread show when this limit is reached.
- Exposed wear bars: The manual states: "Tyres with exposed wear bars are experiencing serious performance loss and therefore must be replaced."
- Visible cracks, bulges, or cord: Replace immediately regardless of tread depth.
- Uneven wear patterns: May indicate misalignment. Get alignment checked and replace affected tires.
- Typical EV tire life: 40,000-60,000 km depending on driving style. Regenerative braking helps extend tire life by reducing harsh braking forces. See our Seal regenerative braking guide for details.
Common Mistakes Seal Owners Make
- Deflating hot tires to match cold specs. The manual warns against this. Hot readings 30-40 kPa above cold values are normal.
- Using the same pressure front and rear. The Seal requires 250 front and 290 rear. Equal pressure causes premature rear tire wear.
- Ignoring TPMS alerts. The system warns you but cannot prevent driving. Always act on the warning.
- Never checking manually. TPMS is helpful but not a substitute for monthly manual checks with a gauge.
- Overinflating for "better range." Marginal gains are outweighed by reduced grip, harsher ride, and centre-tread wear.
- Forgetting winter pressure drops. Cold weather deflates tires naturally. Check monthly from autumn through spring.
