BYD Seal Home Charging Setup: Mode 2 Cable Guide for New Owners

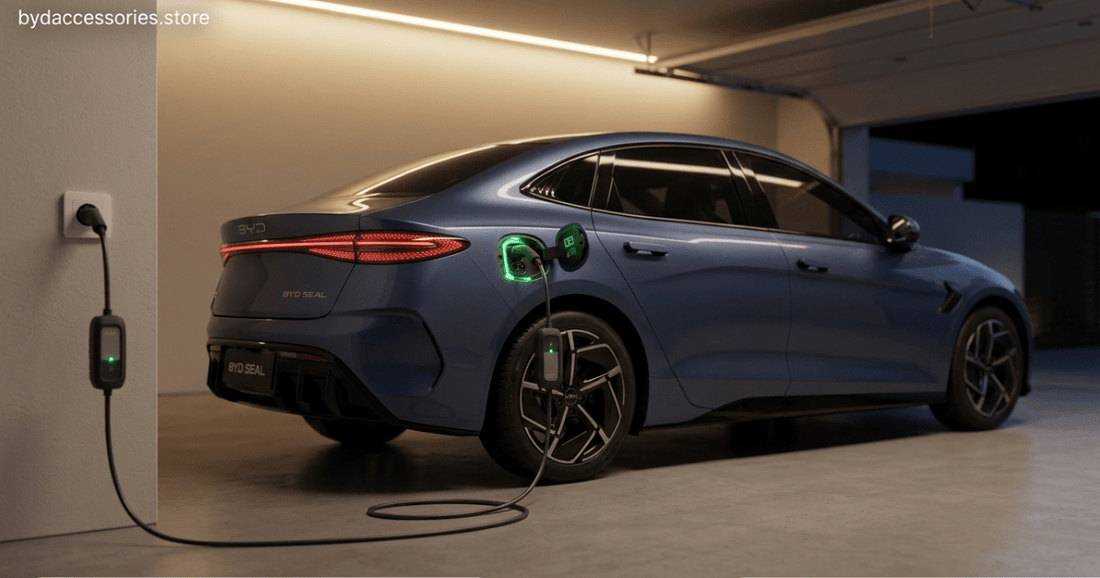

The BYD Seal comes with a Mode 2 charging cable that plugs into any household power socket meeting local standards. The cable includes a power plug, control box with built-in safety protection, and a Type 2 charging connector. At a standard household socket, expect ~2.3 kW charging speed (roughly 10-12 km of range per hour). A dedicated wallbox upgrade to 7 kW or 11 kW cuts overnight charging from 30+ hours to 6-9 hours for a full charge.
What Comes in the Box: Mode 2 Cable Overview?
The BYD Seal's included Mode 2 charging cable consists of four components, as described in the owner's manual:
- Power plug: Complying with local standards (Type G for Middle East/UK, Type F for Europe, Type I for Australia)
- Control box: Built into the cable, handles communication between the socket and the car, includes overcurrent and earth-fault protection
- Charging cable: Connects the control box to the charging connector
- Charging connector: Type 2 plug that connects to the Seal's charge port
The maximum working temperature for the Mode 2 cable is 50°C. Store it in a cool, dry place when not in use.
Compatible Sockets by Region
| Measurement | Socket Type | Voltage / Current | Approx Charge Speed |
|---|---|---|---|
| UAE, Saudi, Bahrain, Kuwait | Type G (3-pin) | 220-240V / 10-13A | ~2.3-3.0 kW |
| Europe | Type F (Schuko) | 230V / 10-16A | ~2.3-3.6 kW |
| Australia, NZ | Type I (3-pin) | 230V / 10A | ~2.3 kW |
| UK | Type G (3-pin) | 230V / 13A | ~3.0 kW |
The manual states: "A household socket meeting local standards must be used to avoid line damage or tripping due to high-power charging." Always use a dedicated circuit, not a shared power strip or extension lead.
Step-by-Step: Plugging In for the First Time
From the BYD Seal owner's manual:
- Park the vehicle in a ventilated area. No occupants should remain inside during charging.
- Unlock the car and preferably power it off.
- Press the charge port door to open it.
- Open the charge port cap. Ensure no obstacles exist between the charging connector head and the socket end.
- Check all connections. Confirm that the power plug, socket, charging connector, and charge port are free from damage, rust, moisture, or foreign objects. Wipe with a dry cloth if damp.
- Insert the power plug into the household socket first.
- Connect the charging connector to the Seal's charge port until it clicks and locks.
- Charging begins. The instrument cluster displays the estimated time to full charge.
To stop charging: remove the charging connector from the car first, then unplug the power plug from the wall socket. The manual specifies this order for Mode 2 charging.
Charging Speed at Home: What to Expect?
| Measurement | Mode 2 (Household) | 7 kW Wallbox | 11 kW Wallbox |
|---|---|---|---|
| Charge speed | ~2.3 kW | 7 kW | 11 kW |
| Range per hour | ~10-12 km/hr | ~35-40 km/hr | ~55-65 km/hr |
| 0-100% (61.44 kWh) | ~27-30 hours | ~9 hours | ~6 hours |
| 0-100% (82.56 kWh) | ~36-40 hours | ~12 hours | ~8 hours |
| Overnight top-up (8 hrs) | ~80-96 km added | ~280-320 km added | ~440-520 km added |
| Installation needed | No (plug and play) | Electrician required | Electrician required |
Mode 2 charging is slow but sufficient for drivers covering under 80 km daily. If your commute is longer or you need a full charge overnight, a wallbox upgrade is worth the investment.
Wallbox Upgrade: Is It Worth It?
- Mode 2 overnight (8 hours): Adds roughly 80-96 km of range
- 7 kW wallbox overnight (8 hours): Adds roughly 280-320 km
- 11 kW wallbox overnight (8 hours): Adds roughly 440-520 km, near-full charge
- Typical wallbox cost (installed): A$1,500-A$3,500 / AED 3,500-8,000
A wallbox also charges more efficiently with less heat, which is better for long-term battery health. See our BYD Seal battery life tips.
Safety: What the Manual Says
The BYD Seal owner's manual includes these critical safety requirements for Mode 2 charging:
- Use a dedicated circuit. Do not share the socket with other high-power devices.
- No extension leads. The manual states: "It is not recommended to use any additional wire or adapter/connector." If an adapter is necessary, cable diameter must be at least 1.5 mm².
- Proper grounding is mandatory. The equipment must be properly grounded. The ground cable provides minimum impedance for discharge, reducing electric shock risk.
- Do not coil the cable during charging. Coiling prevents heat dissipation and can damage the cable.
- Protect from water. Protect charging equipment against water contact on rainy days.
- Do not place equipment in the boot, under the vehicle, or near the tyres during charging.
- Do not modify, disassemble, or repair the charging equipment or its ports.
- Maximum operating temperature: 50°C. Store in a cool, dry place when not in use.
Overnight Charging: Best Practices
- Plug in when you arrive home. The Seal stops automatically when full.
- Park in a ventilated area. No occupants inside during charging.
- Use scheduled charging for off-peak electricity rates where available.
- Close the charge port door after unplugging. Water entering the port causes faults.
- Charge after driving in cold weather. The warm battery charges more efficiently.
Your Seal also supports V2L through the same port. See our BYD Seal V2L guide for details.
When to Call an Electrician vs DIY?
| Measurement | DIY (No Electrician) | Call an Electrician |
|---|---|---|
| Mode 2 on existing socket | Yes, plug and play | Only if socket age or wiring is uncertain |
| Checking circuit capacity | No | Yes, essential before daily EV charging |
| Installing a wallbox | No | Yes, always requires licensed electrician |
| Adding a dedicated circuit | No | Yes, new breaker and wiring needed |
| Outdoor charging point | No | Yes, weatherproof installation required |
The BYD manual recommends contacting a BYD authorised dealer or local electrician to select an appropriate power supply according to the requirements of the charging equipment. The Blade Battery technology powering your Seal is designed for safe overnight charging on any properly wired domestic circuit.
Common Mistakes New Owners Make
- Using an extension lead. The manual explicitly advises against additional wires or adapters. If unavoidable, cable diameter must be at least 1.5 mm².
- Coiling the cable during charging. This traps heat and can damage the control box over time.
- Sharing the circuit with a kettle or A/C unit. High-power devices on the same circuit can trip the breaker mid-charge.
- Leaving the charge port open after unplugging. Water and dust entering the port can cause charging faults.
- Expecting a full charge overnight on Mode 2. At 2.3 kW, a full 82.56 kWh battery takes 36+ hours. Mode 2 is a top-up solution, not a full-charge solution.
- Skipping the grounding check. Ungrounded sockets create a genuine electric shock risk during charging.
